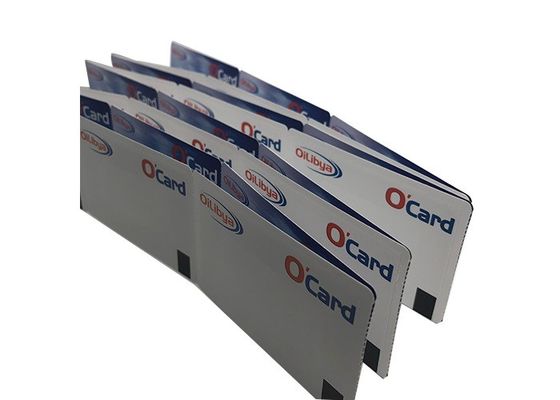

High Frequency NFC RFID Paper Tags With Ultualight EV1 Chip For Customized Printing In 13.5-14.5Mhz

High Frequency NFC RFID Paper Tags With Ultualight EV1 Chip For Customized Printing In 13.5-14.5Mhz

RFID Ultralight EV1

Features

• Contactless transmission of data and supply energy
• Operating distance up to 100 mm depending on antenna geometry and reader configuration
• Operating frequency of 13.56 MHz
• Data transfer of 106 kbit/s
• Data integrity of 16-bit CRC, parity, bit coding, bit counting
• True anticollision
• 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
• Typical ticketing transaction: < 35 ms
• Fast counter transaction: < 10 ms

• 640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
• First 512 bits compatible to MF0ICU1
• Field programmable read-only locking function per page for the first 512 bits
• Field programmable read-only locking function per 2 pages above page 15
• 32-bit user definable One-Time Programmable (OTP) area
• 384-bit or 1024-bit freely available user Read/Write area (12 or 32 pages)
• 3 independent, true one-way 24-bit counters on top of the user area
• Anti-tearing support for counters, OTP area and lock bits
• Configurable password protection with optional limit of unsuccessful attempts
• ECC based originality signature
• Data retention time of 10 years
• Write endurance 100.000 cycles
• Write endurance for one-way counters 1.000.000 cycles

Product Description
