Product Details:
|
| Material: | PET,Paper,PP | Protocol: | ISO18000-6C/6B |
|---|---|---|---|
| Read Range: | 4-8meters | Chip: | IMPINJ MONZA R6/R6-P |
| Dimension: | 95x22mm/65x35mm/30x15mm | Print: | Printed Or Blanck |
| Reading Distance: | 0.5-8m(depend On Reader) | Frequency: | UHF860-960MHz/915MHz |
| Highlight: | UHF Flexible RFID Tag,Passive Flexible RFID Tag,Passive RFID Tags For Asset Tracking |
||

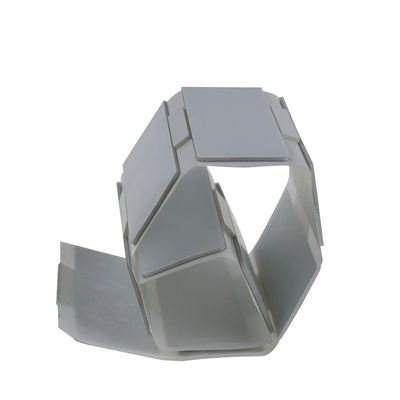

Printable UHF Flexible Metal Tags Mount On Metal In RFID Technology Tracking
|
UHF Flexible Metal Tags Description |
The tag is flexible and can be stuck on metallic assets easily, specially for irregular and uneven surface,such as steel boiler, metal container,steel pipe,etc .It has good performance on metal and can be printed with logo,numbers,text by RFID printers,such as Zebra ZT410 Silverline,Sato CL4NX,Toshiba SX-5,Postek TX3r,etc.Synchronous encoding is also available.
|
||
| Physical Features: | |||
| Model | UHF Flexible On-metal Label | ||
| Material | PET | Dimensions | 95*22*1.25mm |
| Working Temp | -20～+75℃ | Survival Temp | -40℃～+100℃ |
| RFID Features: | |||
| RFID Standard | EPC C1G2 (ISO18000-6C) | ||
| Chip Type | Impinj Monza R6-P | ||
| User Memory | 32(64)bit | ||
| EPC Memory | 128(96) bits | ||
| Max Read Range | 865-868MHz | 8 meters | |
| 902-928MHz | 8 meters | ||
| Other Features: | |||
| Data Storage | > 10 years | ||
| Re-write | 100,000 times | ||
| Installation | Adhesive | ||
| Customization | Company logo,Barcode,Numbers printing,Encoding,etc | ||
|
UHF Flexible Metal Tags Application |
|
||
