Product Details:
|
| Type: | Access Control Proximity RFID Card Reader, Decoding Smart Key Machine | Printing: | Full Color Printing,Offset Printing |
|---|---|---|---|
| Reading Distance: | 3~10cm | Connection: | Bluetooth |
| Application: | Access Control System,Smart Lock / Access Control / Animal ID And Waste Management | Material: | Plastic,Alloy Metal |
| Card Type: | IC,PSAM & RFID Card,RF | Dimension: | 120.5X55.2X24MM |
| Weight: | 113.5g | ||
| Highlight: | Handheld Card Reader Copier,UID Card Reader Copier,Handheld Rfid Reader Copier |
||

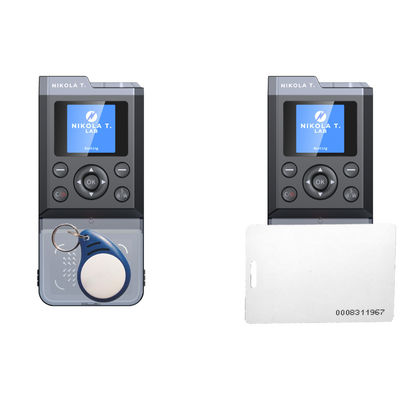

RFID Card Copier Reader ICOPY-XS MIFERE Classic® 1K 7 Byte UID Compatible From Nikola T. Lab
iCopy-XS is a "super" automated handheld RFID copier based on Proxmark3. iCopy-XS can read, crack, duplicate, sniff and simulate without the use of a PC.
Currently, iCopy-XS reads up to 39 types of RFID system cards and copies up to 37 types of RFID cards which is the highest in the world.
|
Screen |
Refresh rate: 50Hz Resolution: 240x240 Size: 1.3 inches RFID system HF(13.56MHz): ISO14443A/ISO14443B/ISO15693/PICOPASS LF(125/134kHz): ASK/FSK/PSK |
|
Physical dimension |
Height: 120.5mm Width: 55.2mm Thickness: 24mm Antenna thickness: 9.7mm Weight: 113.5g |
|
Operating System |
NIUI 1 Based on Linux. |
|
Packing list |

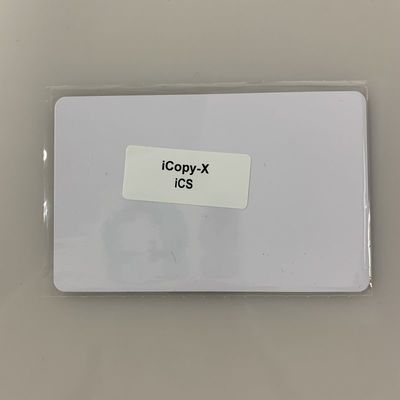

iCopy-XS x1 USB Type-C data cable x1 Box of RFID Cards x1 Manual x1 |
EXPLORING YOUR ICOPY-XS
GETTING STARTED
USING ICOPY-XS
1) Auto Copy
Automatic scanning, reading, and writing of all information of the original RFID Tag to a
new UID card/tag.
2) Scan Tag
Scanning of tag and getting the basic information of the tag type.
3) Read Tag
Reading of all available information of tag (including blocks and sectors).
4) Sniff Traffic
Sniffing of locked sector keys for cards/tag.
5) Simulation
Simulation of Low and High Frequency RFID Tags
6) PC-MODE
Enter PC-Mode for expert mode
7) Backlight
OFF/ON Backlight of screen
8) Diagnosis
Running various tests to check
9) Volume
Adjusting of volume
10) About
Serial no. of ICOPY-XS and firmware update
Innovative expert mode, namely PC-mode.
In PC-Mode, after connecting to the computer, open the client in the built-in U disk, you can directly use the Proxmark3 universal CMD to operate. It is convenient for users to directly operate the equipment in a more professional way.
Hardware Specification
Charging and battery
Battery capacity: 2000mAh 7.4Wh
Charging interface: USB type-C double-sided charging
interface
Charging power: 10W (MAX)
Charging time: 2 hours
OTG function: support
Standby time: 4.5 hours
Processor and memory
CPU technology: Cortex-A7
CPU frequency: 600MHz
GPU: ARM Mali
Memory: 256MB+4GB 256MB+8GB 256MB+16GB
